多功能提取罐

MULTIFUNCTIONAL EXTRACTING TANK

本設備可用于中藥、食品、化工行業的常壓、微壓、水煎、溫浸、熱回流、強制循環、滲漉、芳香油提取及有機溶煤的回收等多種工藝操作。大小錐型提取罐最突出的特點是出渣非常方便，加熱效果好。罐體配備CIP清洗自動旋轉噴洗球，測溫孔、防爆視孔燈、視鏡、快開式投料口等，確保操作簡便，符合GMP標準。設備內筒體材質為進口SUS304，夾套采用全封閉硅酸鋁毯保溫，外筒體貼SUS304亞光薄鋼板飾面。設備成套供應包括：除沫器、冷凝器、冷卻器、油水分離器、過濾器、氣缸控制臺等附件。

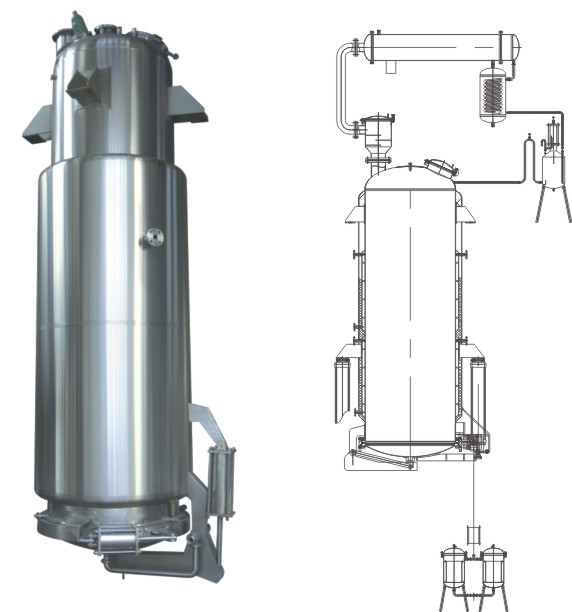

The equipment is applicable for the multiple technology operation of normal pressure, micro pressure, water frying, warm soaking, thermal reflux, compulsory circulation, filtration, redolent oil extraction and organically solvent recycling in traditional Chinese medicine, food and chemical industry. The prominent characteristics of the large and small taper type extracting tank is that the slagging is very convenient with good heating effect.The tank body is equipped with CIP cleaning automatic rotary spraying ball head, temperature measuring hole, explosion-proof view lamp, view mirror, rapid open feeding inlet etc., which can guarantee the convenient operation and is in accordance with GMP standard.  The tank body inside the equipment is made of imported SUS304, and the jacket is made of completely sealed aluminum silicate blanket for temperature holding. The external tank body is stuck with SUS304 semi-luster thin steel sheet for surface decoration. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water separator, filter and control desk for cylinder etc. Accessories.
